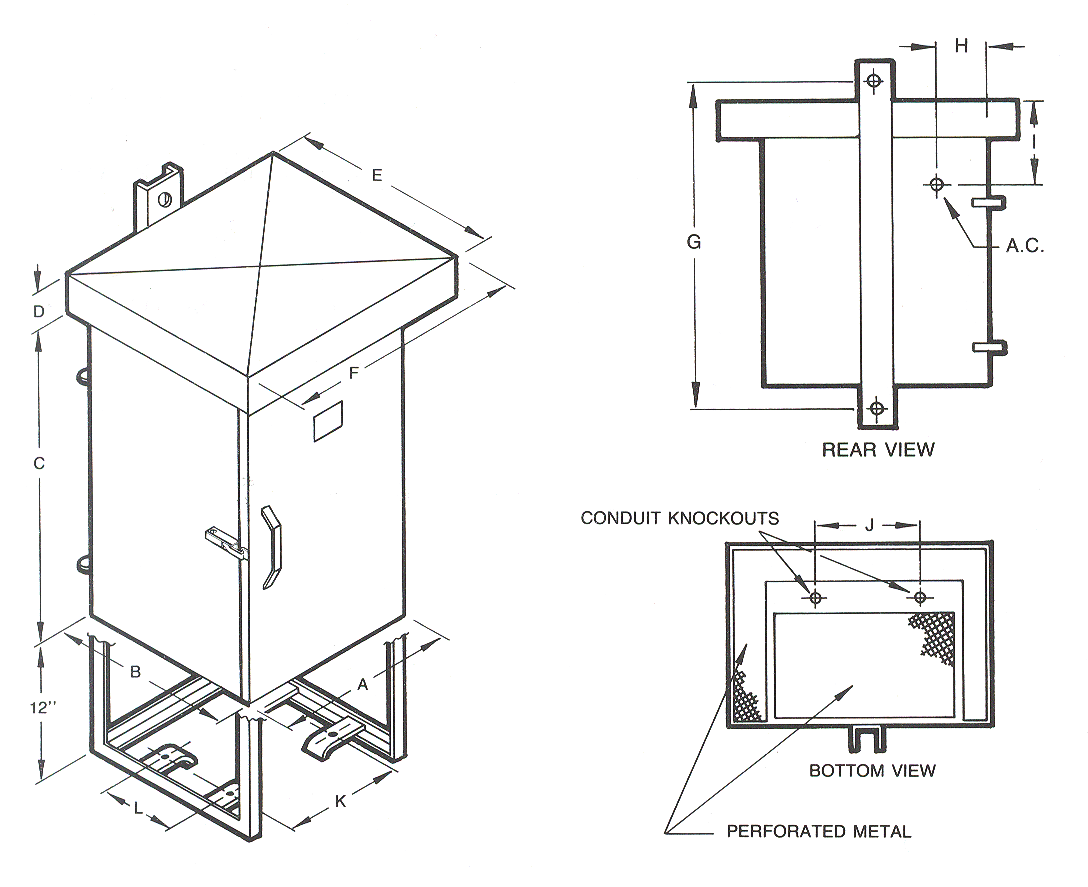

Typical Cabinet Dimensions
Air Cooled Standard Line
Case Dimensions (inches)
Case
Size
A B C D E F G H I J K L
14.5 12 19.5 3 14.5 19 26.25 3 7.5 6 7.5 3
17.5 15.5 23.5 3.5 18 23 32 3 9 8 10 6
22.5 21.5 23.5 3.5 24 28 32 3 9 10 15 10
28.5 22.5 23.5 3.5 25 34 32 3 9 12 21 10
34 28 33 5 33 44 41.25 3 18.5 14 25 14
A
B
C
D
E
