| TYPE |
| TB = Terminal only |
| TB-S = Terminals & Shunts |
| TB-SR = Terminals, Shunts & Resistors |
| ENCLOSURE (Suggested nema 3r when using resistors) |
| Fiberglass (standard) ____________________ Nema 4x |
| Galvanized 16ga (standard) _______________ Nema 3r |
| Galvanized Hot-dip 11ga __________________ Nema 3r |
| Aluminum ______________________________ Nema 3r or 4x (specify) |
| Aluminum / Anodized _____________________ Nema 3r or 4x (specify) |
| Aluminum / Anodized / Clear coat ___________ Nema 3r or 4x (specify) |
| Stainless Steel __________________________ Nema 4x |
| Explosion Proof (cast aluminum) _____________ Class 1 Div. 1 |
| Note: Nema 3r (vented) ________ Nema 4x (sealed) |
| SHUNT TYPE and RATING |
| RS (wire shunt) 5 amps |
| SS (stainless steel) 25 amps |
| SW (brass block) 5, 10, 15, 20, 25, 30, 50, 75, 100, 200 amps |
| TERMINAL LUG |
| KA-4C = #14 - #4 wire |
| KPA-25 = #4 - 1/0 wire |
| KPA-28 = 1/0 - 4/0 wire |
| RESISTORS (1-ohm standard) |
| 25 watt - 1-ohm _______________ (5.0 amps max.) |
| 50 watt - 1-ohm _______________ (7.07 amps max.) |
| 100 watt - 1-ohm _______________(10.0 amps max.) |
| 300 watt 1-ohm ________________ (17.3 amps max.) |
| Space Only (for future resistor or resistance wire) |
| SPECIAL FEATURES |
| Rheostats (Specify size - Watts / Ohm) |
| Ammeter with switch |
| Conduit knock-outs in box (Specify size & qty.) |
| Specify other |

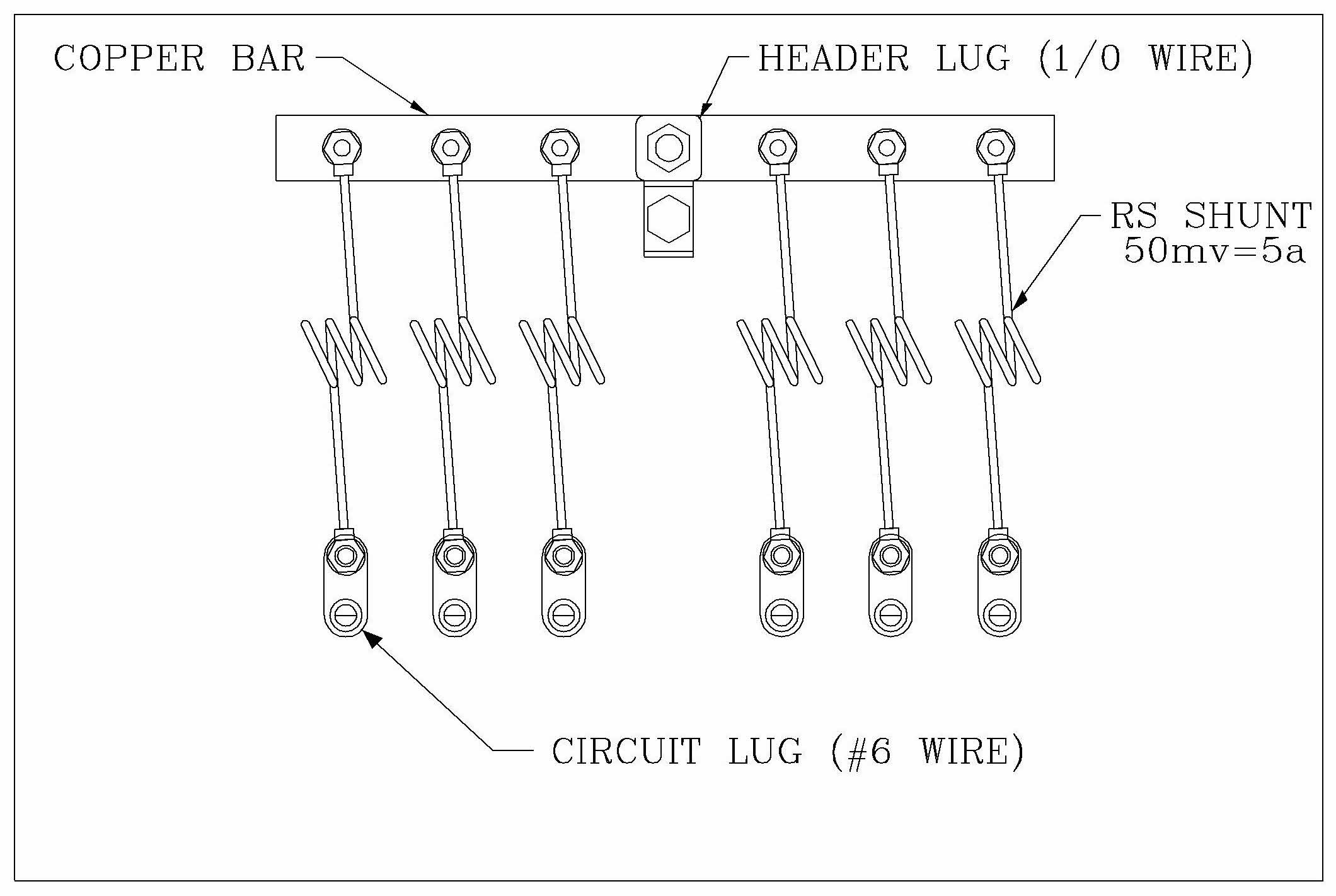

| JUNCTION BOX ORDER FORM |
| Type of Junction Box | TB-S |
| Number of Circuits: | 6 |
| Enclosure & Nema Rating | Fiberglass 4x |
| Shunt Type & Rating | RS 5amp |
| Header Lug Size | KPA-25 |
| Circuit Lug Size | KA-4C |
| Resistor Watt / Ohm | None |
| Special Features | None |
